產品介紹:
HSH-E系列環鏈手扳葫蘆主要機件選用鋼材制造,在設計與使用性能上具有以下特點:
1.安全可靠、經久耐用。2.性能好、維修簡便。3.體積小、重量輕、攜帶方便。4.手扳力小、效率高。5.結構先進、外形美觀。
用途:
環 鏈手扳葫蘆主要額定起重量為250公斤、500公斤、750公斤、1500公斤、3000公斤、6000公斤9000公斤。適用于工廠、礦山、建筑工地碼 頭、運輸?shù)雀鞣N場合,是設備安裝、貸物起吊、物體固定、綁扎和牽引的理想工具,尤其是任意角度的牽引和在場地狹小,露天作業和無電源的情況下,更顯示其優 越性。
Features:Themain parts of the HSH-E series endless chain lever block are of good quality steel.It has the following features in design and usage performance.1.Reliable and durable.2.Good performance and easy to maintain.3.Small,light and easy to carry.4.Need small hand force and efficient.5.Advanced in structure and have beautiful appearance.
Use:The rated lifting capacity of the endless chain lever block is 250kg,500kg,750kg,1500kg,3000kg,6000kg,and 9000kg, It is widely used in factoriescmines,construction areas,docks,and transport conditions.It is the ideal tool for equipment isstallation,object lifting,object fixing,banding and towing,especially suitable for towing of random angle, and working in scanty place,open air and place with no power supply.

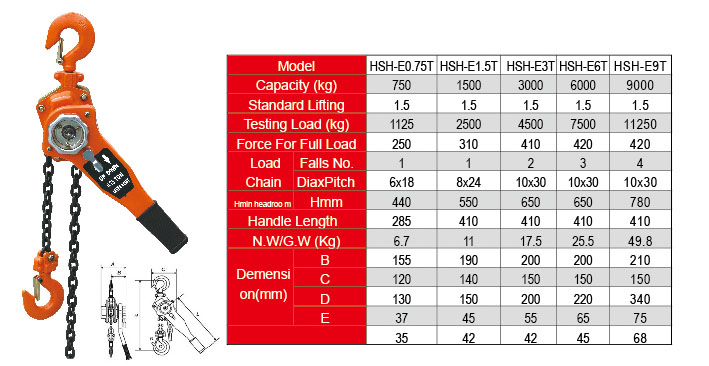

型號 | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | |
額定載荷 | 噸ton | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
起重高度 | 米m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
實驗載荷 | 噸ton | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 7.5 |
11.25 |
兩鉤間Min離位 | 毫米mm | 320 | 320 | 360 | 365 | 470 | 565 | 360 |
滿載時的手扳力 | 公斤力kgt | 21 | 23 | 24 | 30 | 32 | 34 | 34 |
起重鏈行數 | 1 | 11 | 1 | 1 | 1 | 2 | 2 | |
起重鏈條圓鋼直徑 | 毫米mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
手柄長度 | 毫米mm | 280 | 280 | 410 | 410 | 410 | 410 | 410 |
裝箱尺寸 | 毫米mm | 36*14*13 | 36*14*13 | 51*18.5*15.5 | 51*18.5*15.5 | 51*19.5*19 | 51*19.5*19 | 63*27*23 |
凈重 | 公斤kg | 67/5.7 | 8 | 11/10 | 11.5 | 17.5/16.5 | 25.5/24.5 | 27 |
裝箱毛重 | 公斤kg | 11.5 | 11.5 | 15.5 | 15.5 | 29 | 32 | 32 |
Model | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | |
loading weight | ton | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
Left | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Test load | ton | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 7.5 |
11.25 |
HMin,distance between hooks;H | mm | 320 | 320 | 360 | 365 | 470 | 565 | 360 |
Pull on Lever to left full load | kgt | 21 | 23 | 24 | 30 | 32 | 34 | 34 |
No.of.load chain falls | 1 | 11 | 1 | 1 | 1 | 2 | 2 | |
Diametrr of load chain | mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
Lenght of lever handle;D | mm | 280 | 280 | 410 | 410 | 410 | 410 | 410 |
Packing measurement(L*W*H) | mm | 36*14*13 | 36*14*13 | 51*18.5*15.5 | 51*18.5*15.5 | 51*19.5*19 | 51*19.5*19 | 63*27*23 |
Net weight | kg | 67/5.7 | 8 | 11/10 | 11.5 | 17.5/16.5 | 25.5/24.5 | 27 |
Gross weight | kg | 11.5 | 11.5 | 15.5 | 15.5 | 29 | 32 | 32 |
